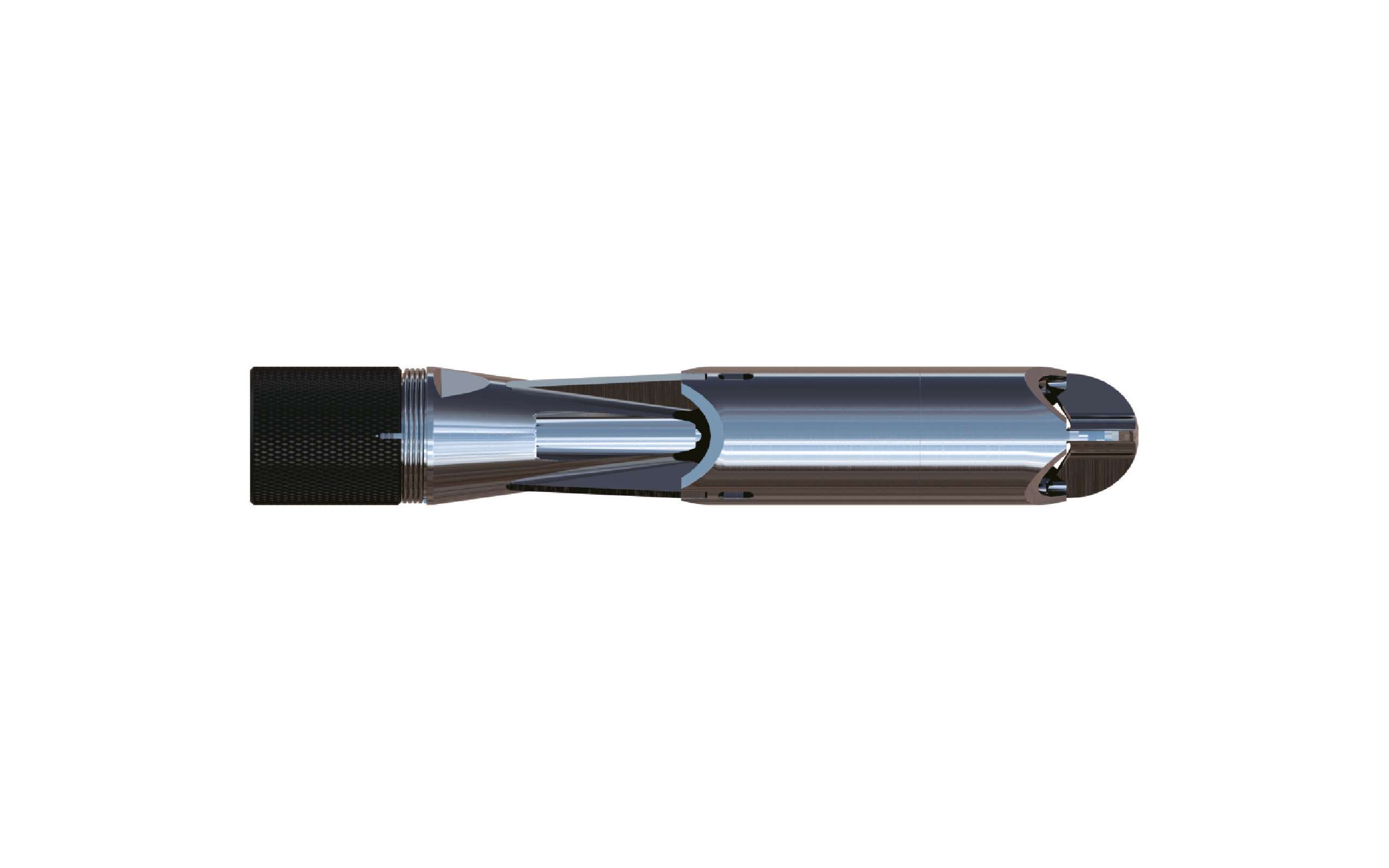

Continuous Jeweled Bearing Flowmeter, metal tube with black cap on one side and rounded end on other side

Continuous Jeweled Bearing Flowmeters (IFJM)

The jeweled bearing flowmeter (IFJM) employs jewels for the support of the spinner pivot to reduce threshold displacement and improve sensitivity

Product summary

The jeweled bearing flowmeter (IFJM) employs jewels for the support of the spinner pivot to reduce threshold displacement and improve sensitivity.

The tool is very rugged as the housing provides the spinner with good protection. The flowmeter is applicable to all deviations, from vertical to horizontal.

  • IFJM01

    43mm (1 11/16”) - 43mm (1 11/16”)

  • IFJM02

    35mm (1 3/8”) - 35mm (1 3/8”)

  • IFJM07

    35mm (1 3/8”) - 43mm (1 11/16”)

  • IFJM11

    43mm (1 11/16") - 54mm (2 1/8")

  • IFJM12

    35mm (1 3/8”) - 54mm (2 1/8")

Applications

  • Production profiling

  • Injection profiling

  • Logging in sand screens /slotted liners
