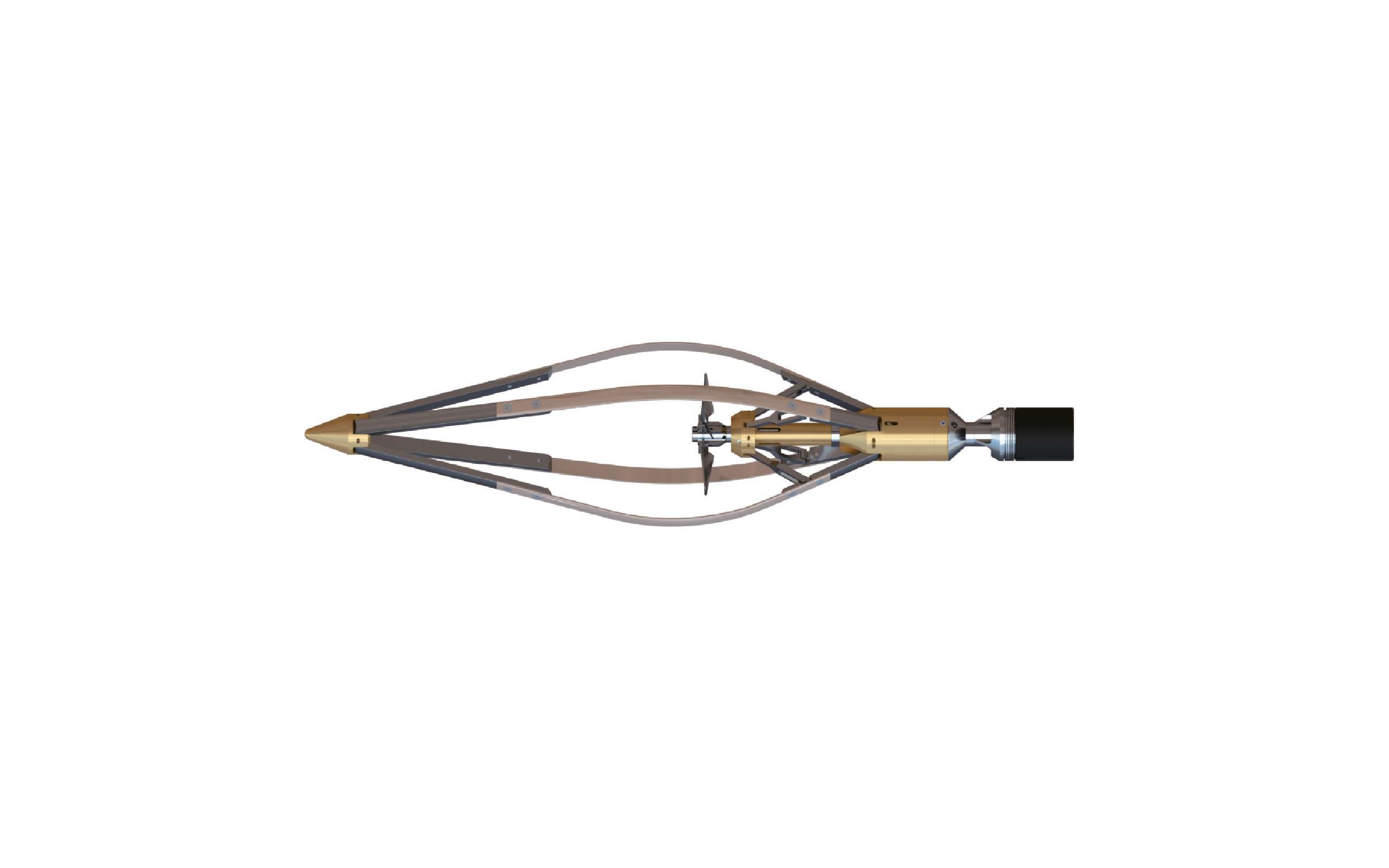

Caged Springbow Fullbore Flowmeter (CSFM)

The caged springbow fullbore flowmeter (CSFM) is run at the bottom of the production logging tool (PLT) string.

Product summary

The caged springbow fullbore flowmeter (CSFM) is run at the bottom of the production logging tool (PLT) string.

The spinner consists of an impeller and a cage, which may be collapsed to the size of tool diameter for running in and pulling out of tubing.

The cage assembly is designed to protect the impeller and to center the tool in highly deviated wells.

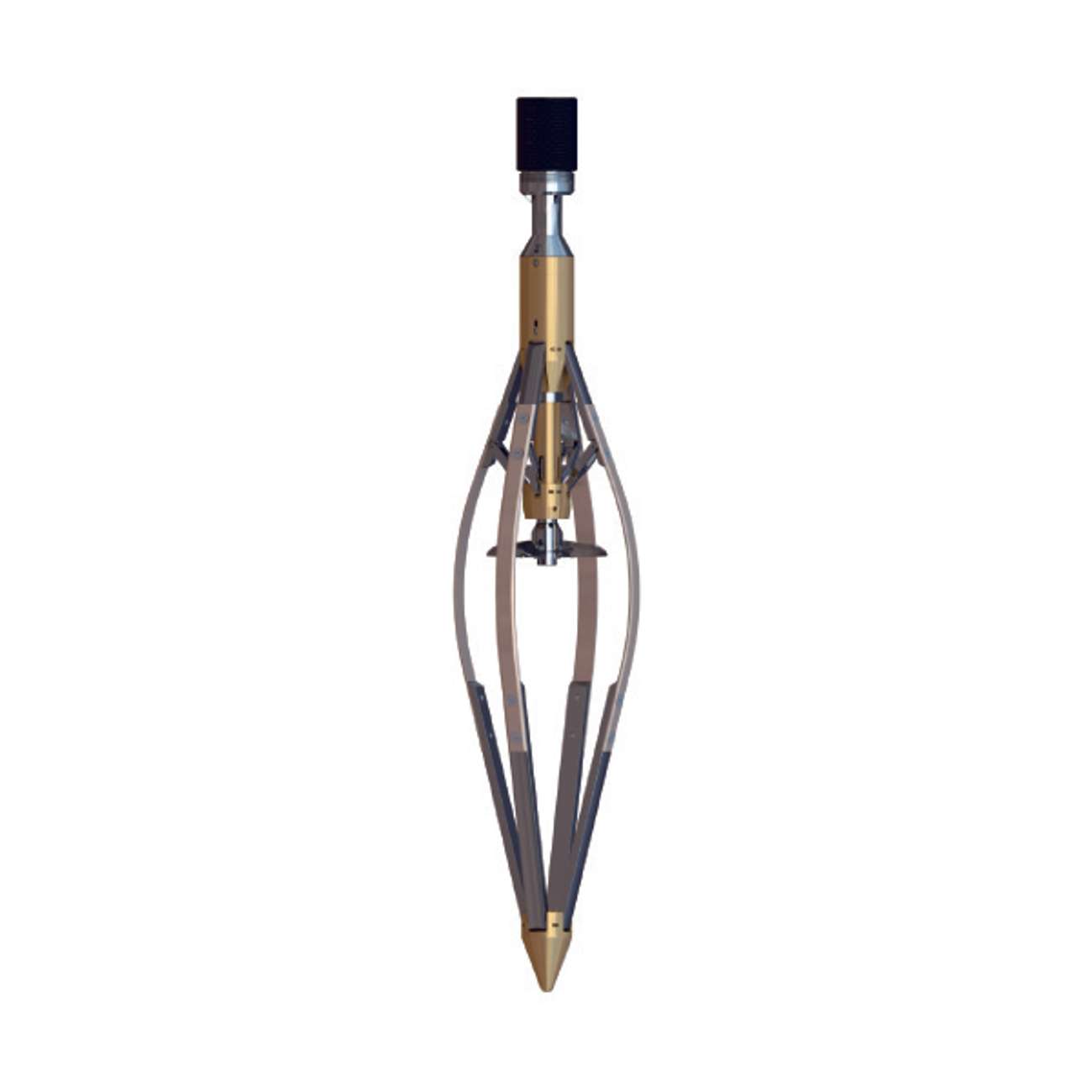

  • CSFM30

    5 1/2” - 7”

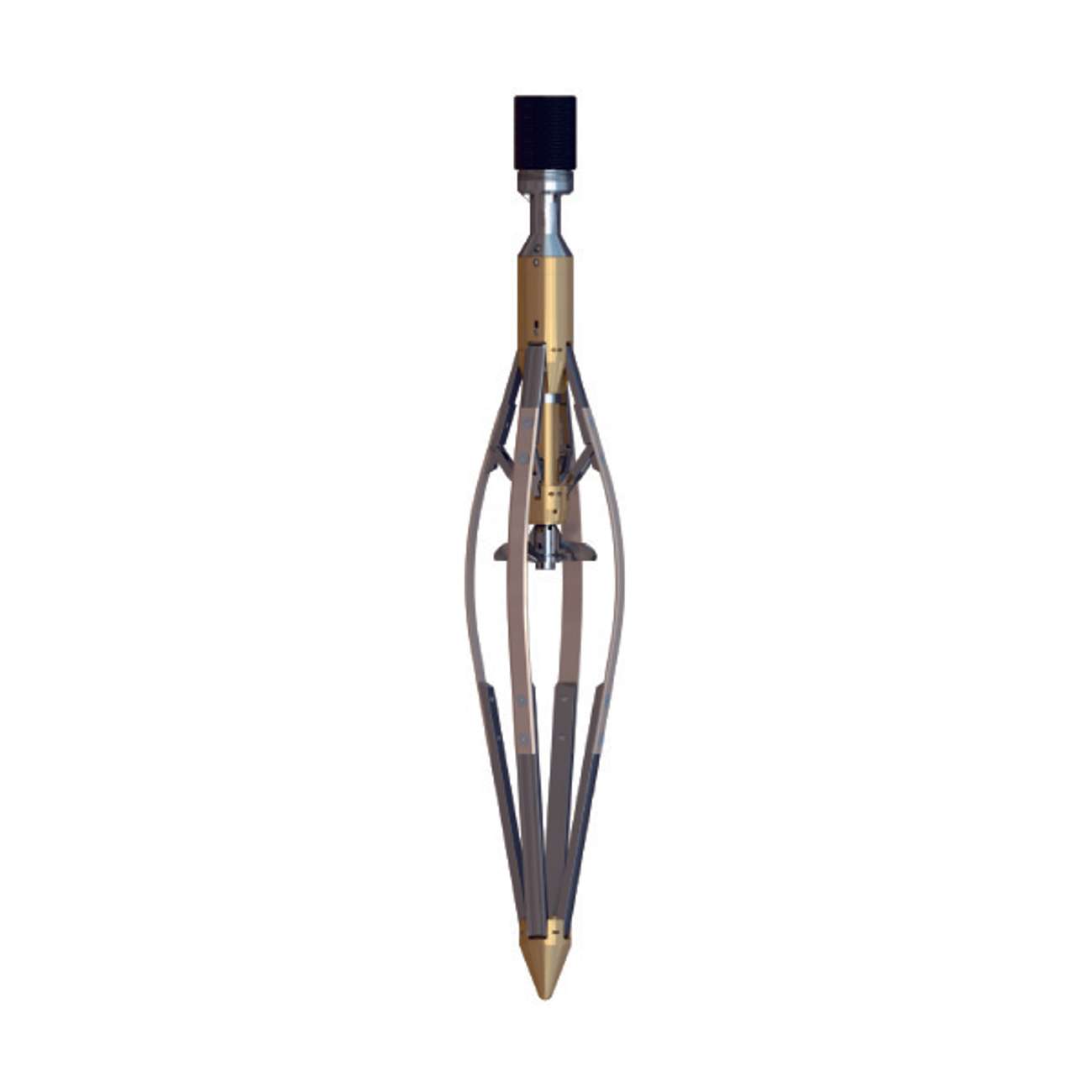

  • CSFM32

    5 1/2”

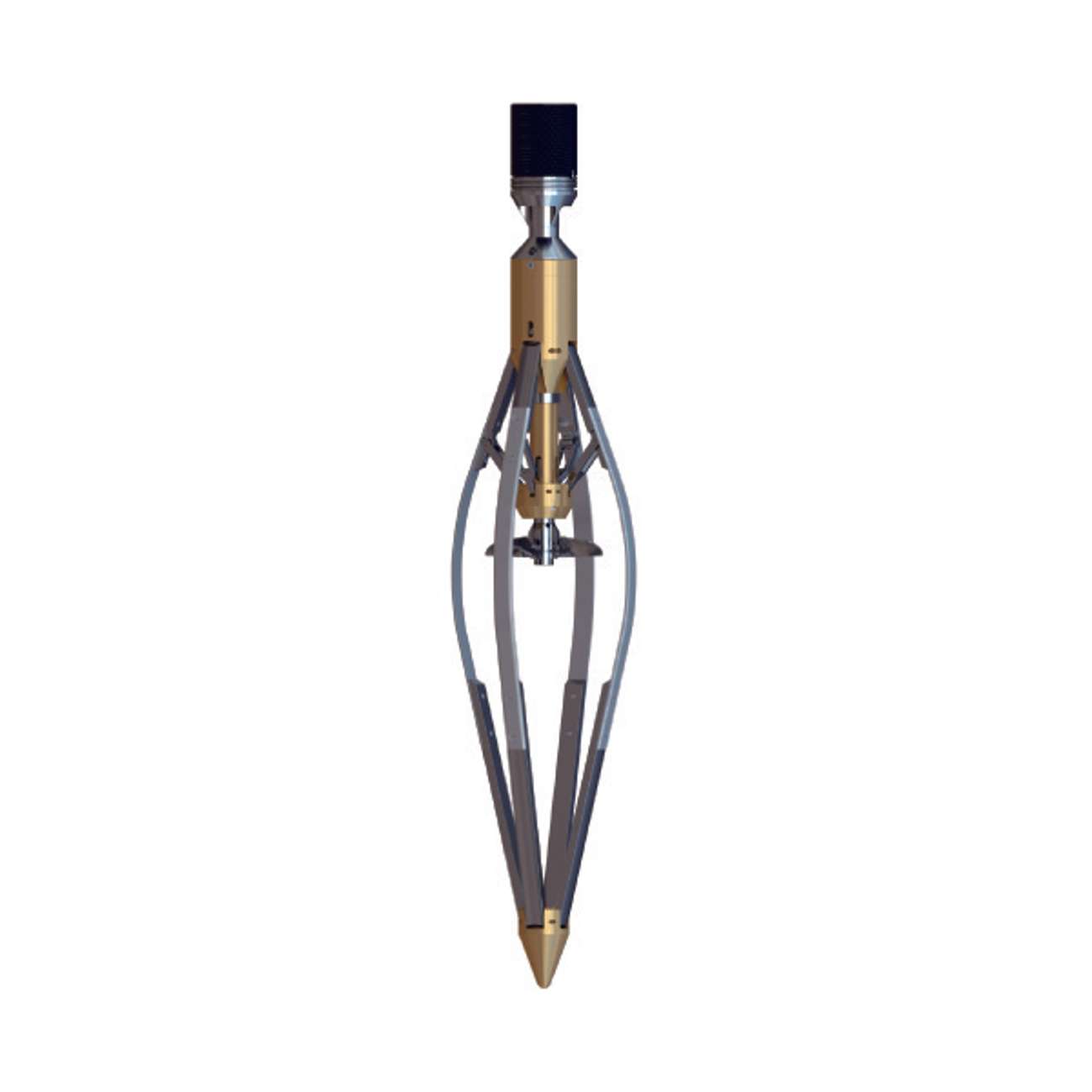

  • CSFM33

    4 1/2"

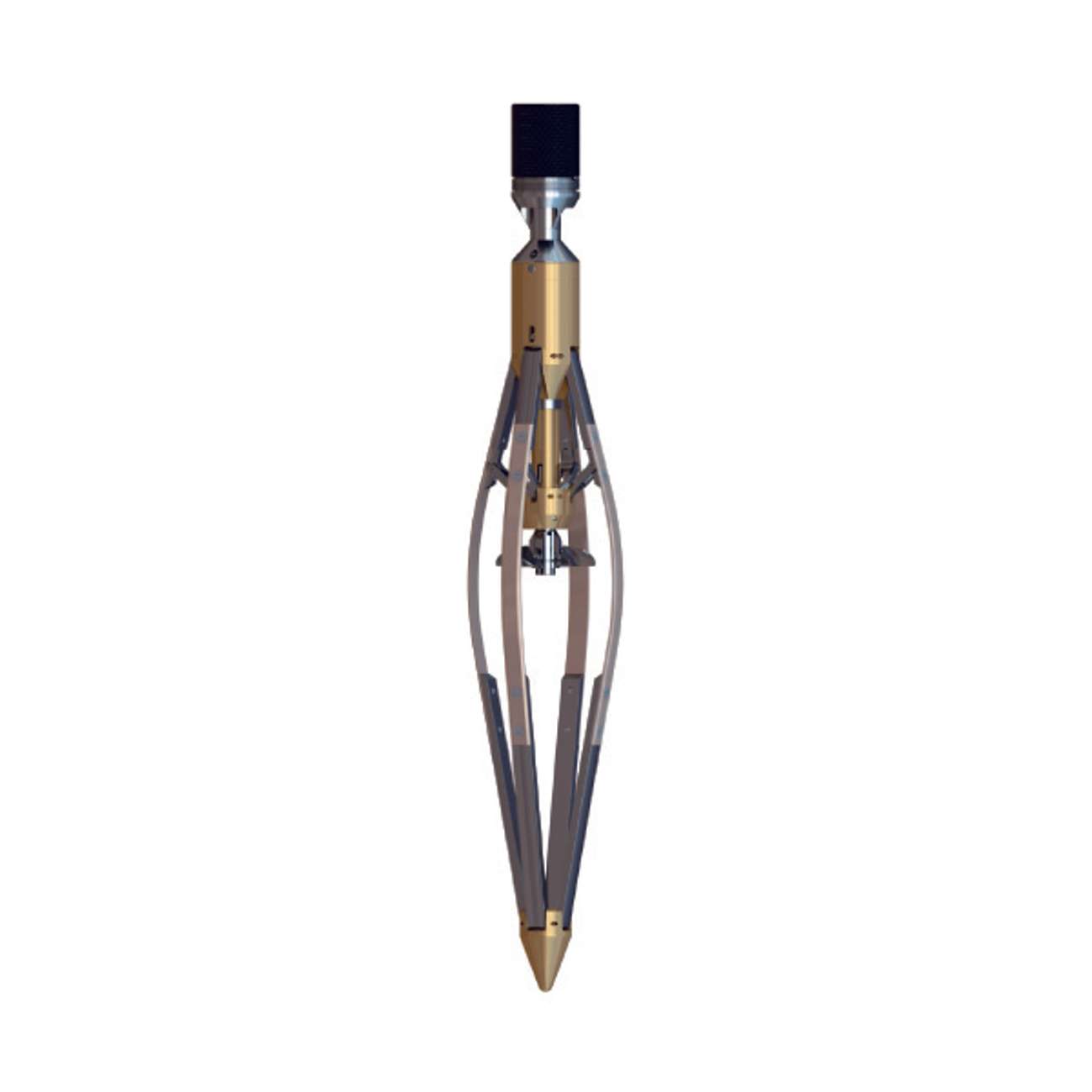

  • CSFM34

    7”

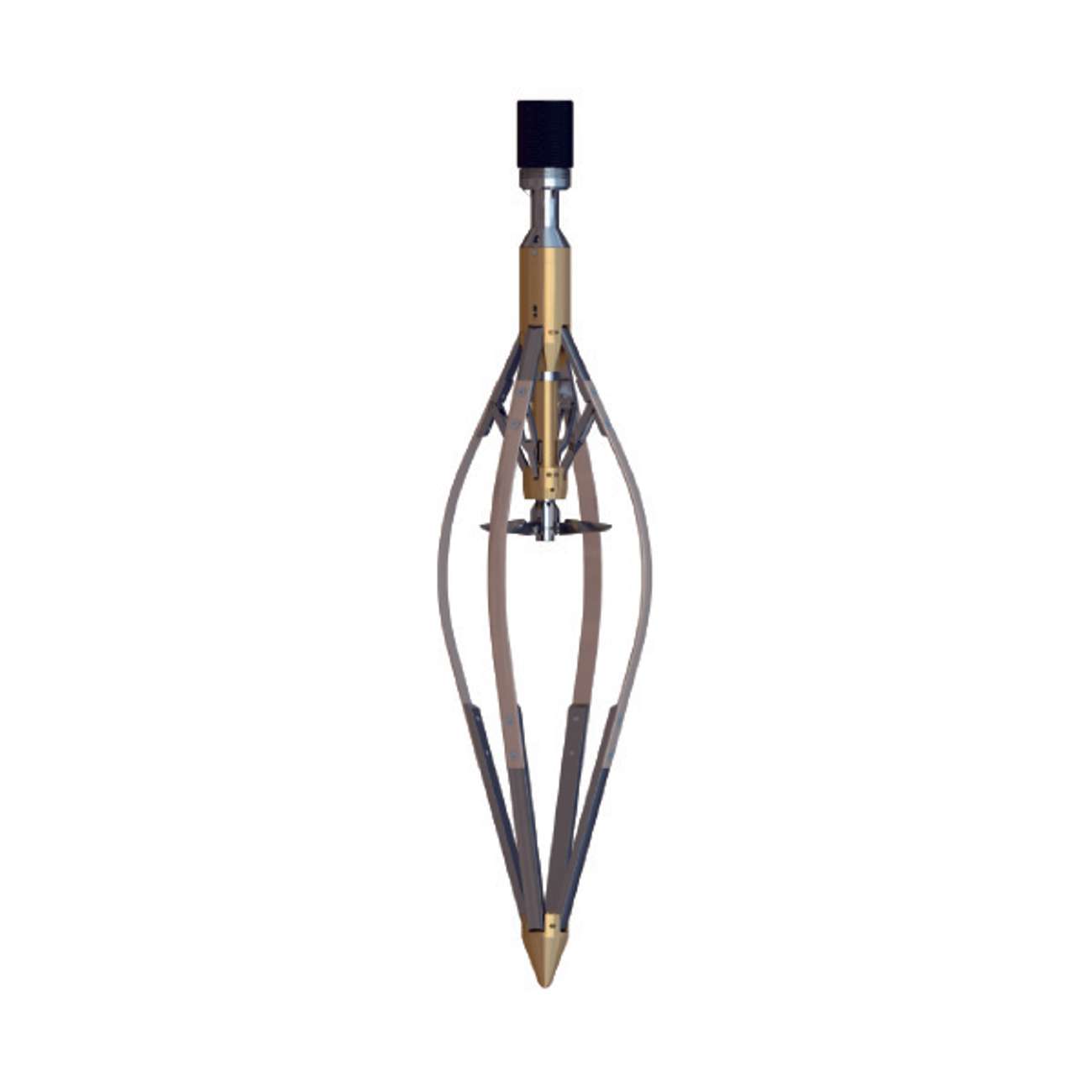

  • CSFM35

    5 1/2"

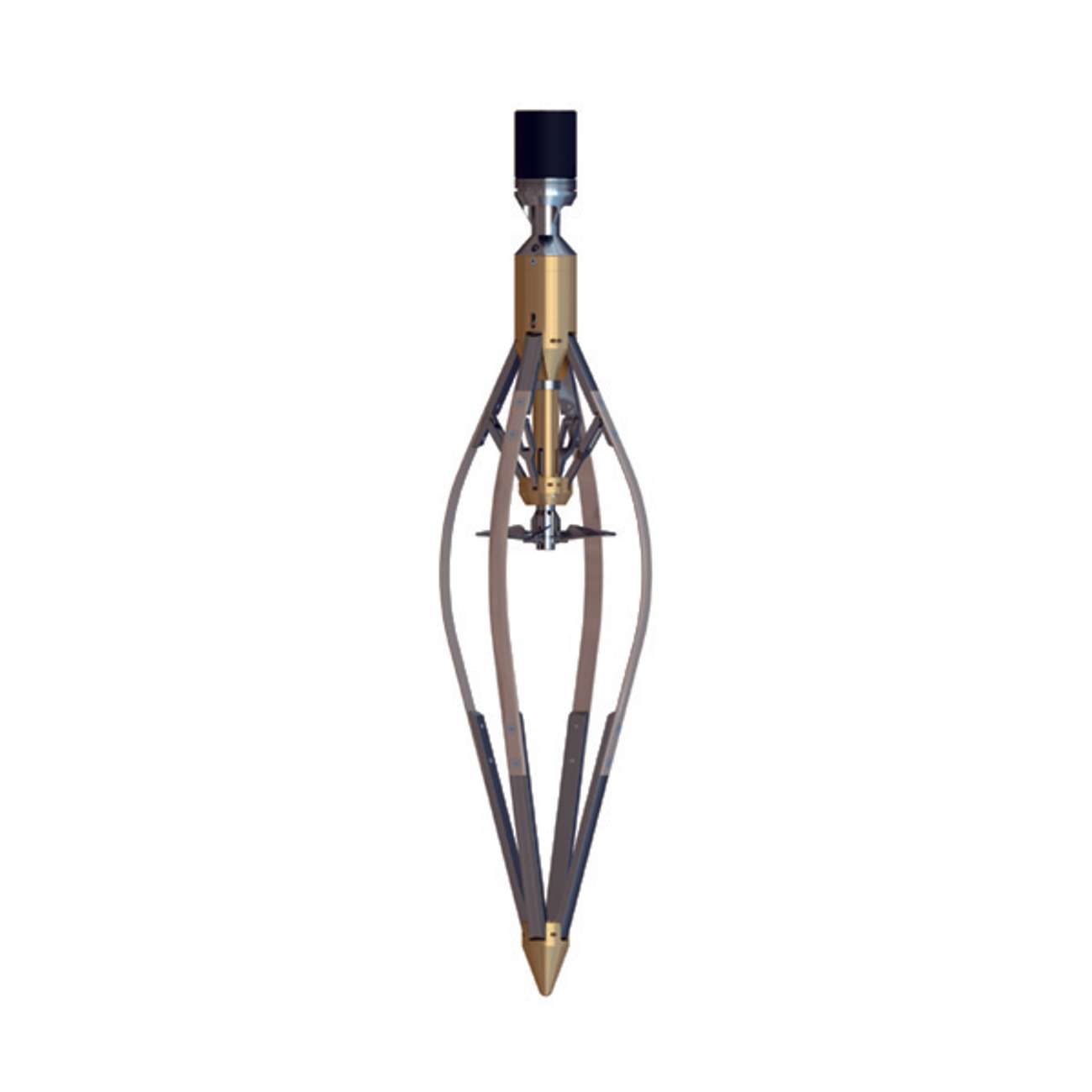

  • CSFM36

    4 1/2”

Applications

  • Production profiling in casing

  • Injection profiling

  • Low flow rate

  • Detection of leaks and crossflow
