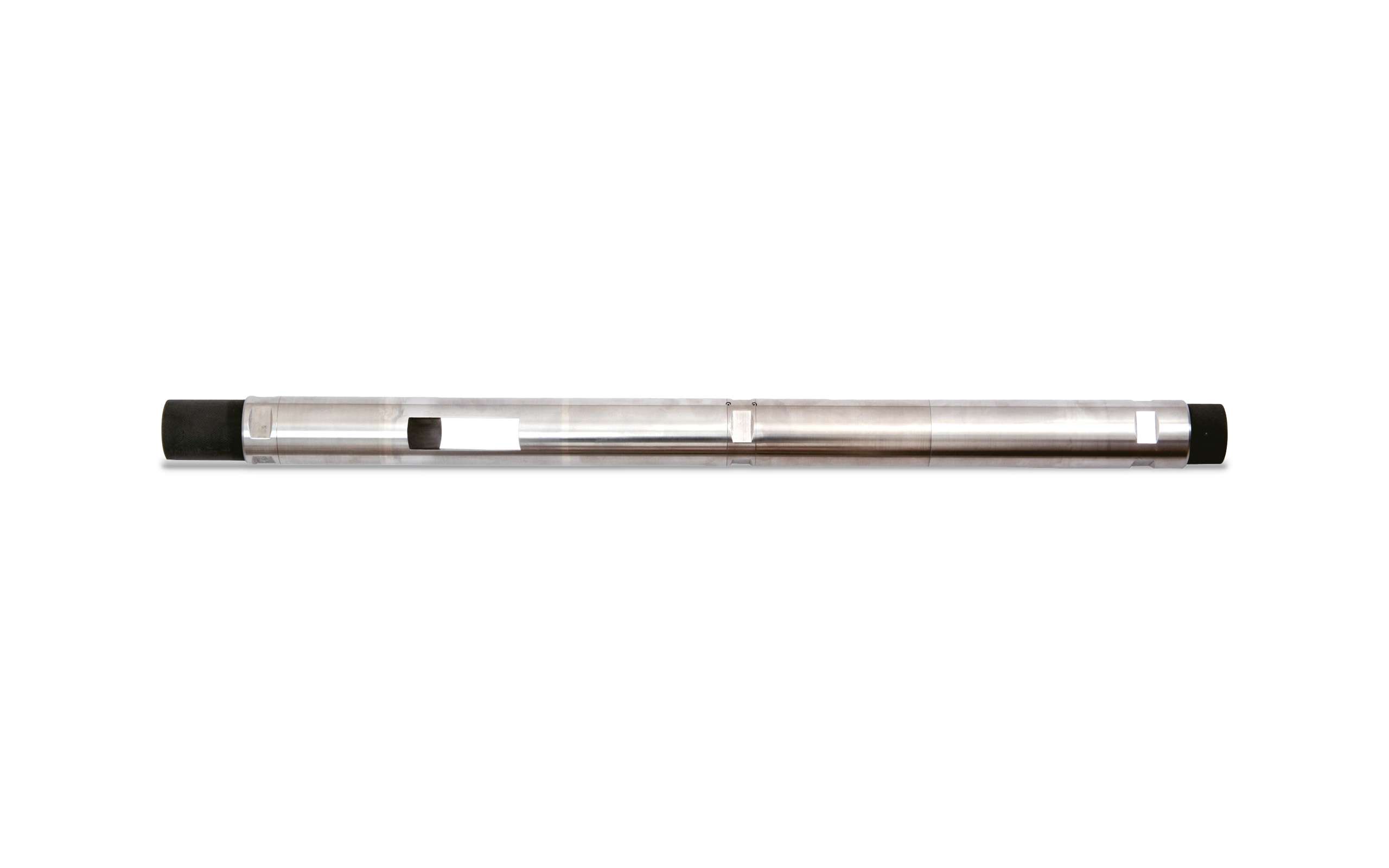

Fluid density tool - long metal tube with black ends

Fluid Density Tools - Radioactive (FDR)

The FDR provides a reliable and comparatively safe means to measure wellbore fluid density

Product summary

The radioactive fluid density tool (FDR) provides a reliable and comparatively safe means to measure wellbore fluid density, regardless of the well deviation and flow rate.

A low-energy gamma ray source is used, which generates radiation rays to a distance of one meter from the tool.

The radiational section is shielded so that the measuring is minimally negatively affected by radioactive scale.

The very high count rate provides excellent data. A radiation shield is provided which can be locked on the tool so that the source can stay in the tool between jobs.

  • FDR16

    Low-energy Americium-241 - 35mm (1 3/8") - 766.5mm (30.18") - 671.5mm (26.44") - 183.5mm (7.22")

    A low-energy Americium-241 gamma ray source is used, which generates radiation rays to a distance of one meter from the tool.

  • FDR18

    Low-energy Americium-241 - 43mm (1 11/16") - 723.5mm (28.48") - 628.5mm (24.74") - 98.5mm (3.88")

    A low-energy Americium-241 gamma ray source is used, which generates radiation rays to a distance of one meter from the tool.

  • FDR17

    Cesium-137 - 43mm (1 11/16") - 920mm (36.22") - 825mm (32.48") - 202mm (7.95")

    A Cesium-137 gamma ray source is used, which generates radiation rays to a distance of one meter from the tool.

  • FDR19

    Cesium-137 - 35mm (1 3/8") - 885mm (34.84") - 790mm (31.10") - 202mm (7.95")

    A Cesium-137 gamma ray source is used, which generates radiation rays to a distance of one meter from the tool.

Applications

  • Fluid identification

  • Horizontal and highly deviated wells

  • High fluid flow rates
