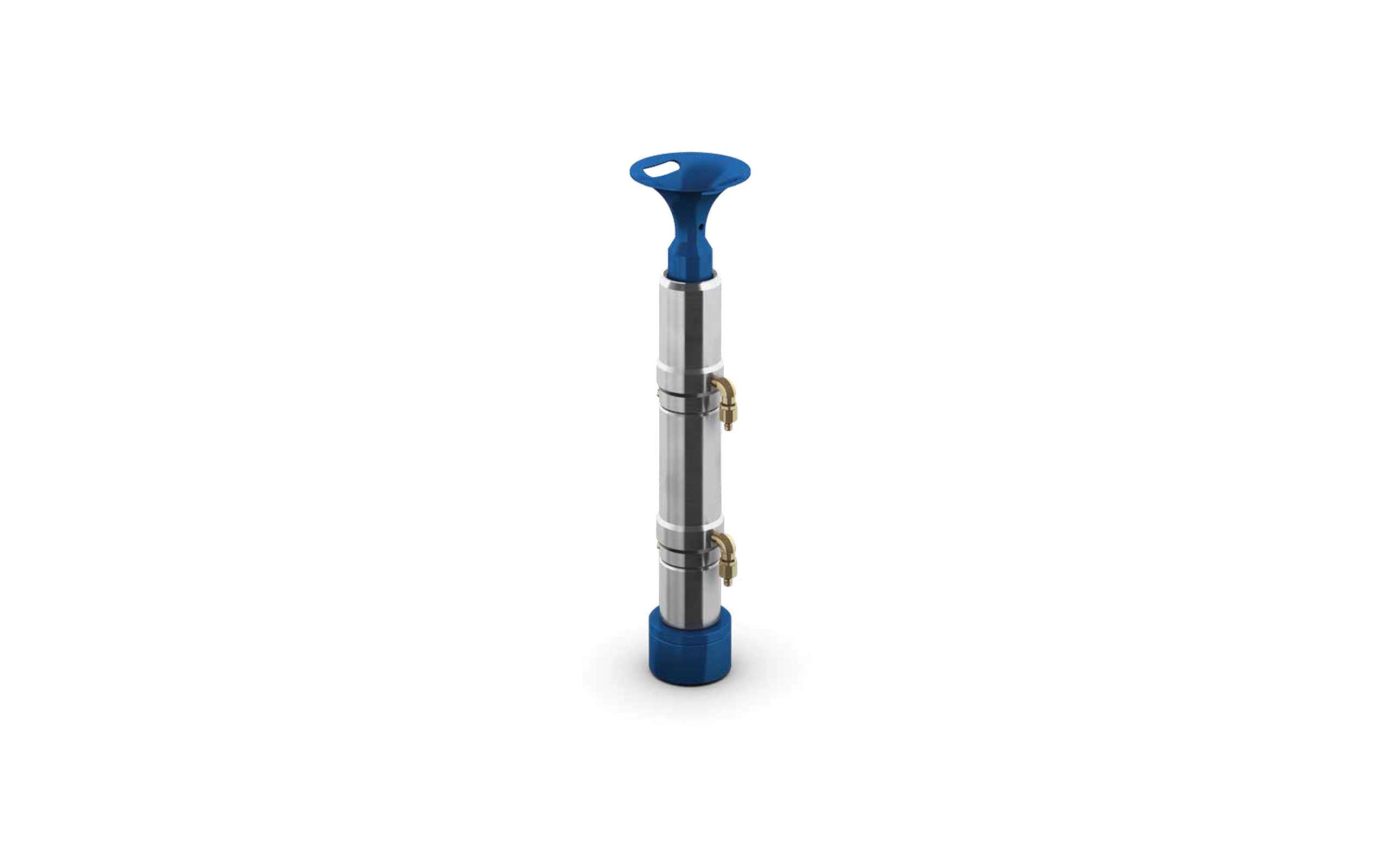

Hydraulic Pack Off rendering

Hydraulic Pack Off

The Hunting Hydraulic Pack Off is a simple, reliable means of sealing on a cable during very low pressure open hole operations.

Product summary

The Hunting Hydraulic Pack Off is a simple, reliable means of sealing on a cable during very low pressure open hole operations.

The Hunting Pack Off is supplied with a cable protector funnel on top and a quick union or tubing connection at the base.

Brass upper and lower packing adapters guide the cable through the rubber element. When performing swabbing operations, should the well start to ‘come in’, the elements can be hydraulically activated to provide a low pressure seal against the cable.

Elements are available to suit different well conditions

Features

  • Quick union connections

  • Single of dual pack off available

  • Top funnel

  • Brass upper and lower packing adaptors

  • Split rubber element

Benefits

  • Used during swabbing operations as emergency barrier

  • Dual pack of provides additional barrier

  • Pressure can be applied hydraulically to the pack off elements

  • The top funnel is to protect the wire from damage whilst in operation and rigging up/down

  • Brass upper and lower glands ensure the wire runs central in the element

  • Element can be replaced with cable through the pack off assembly
