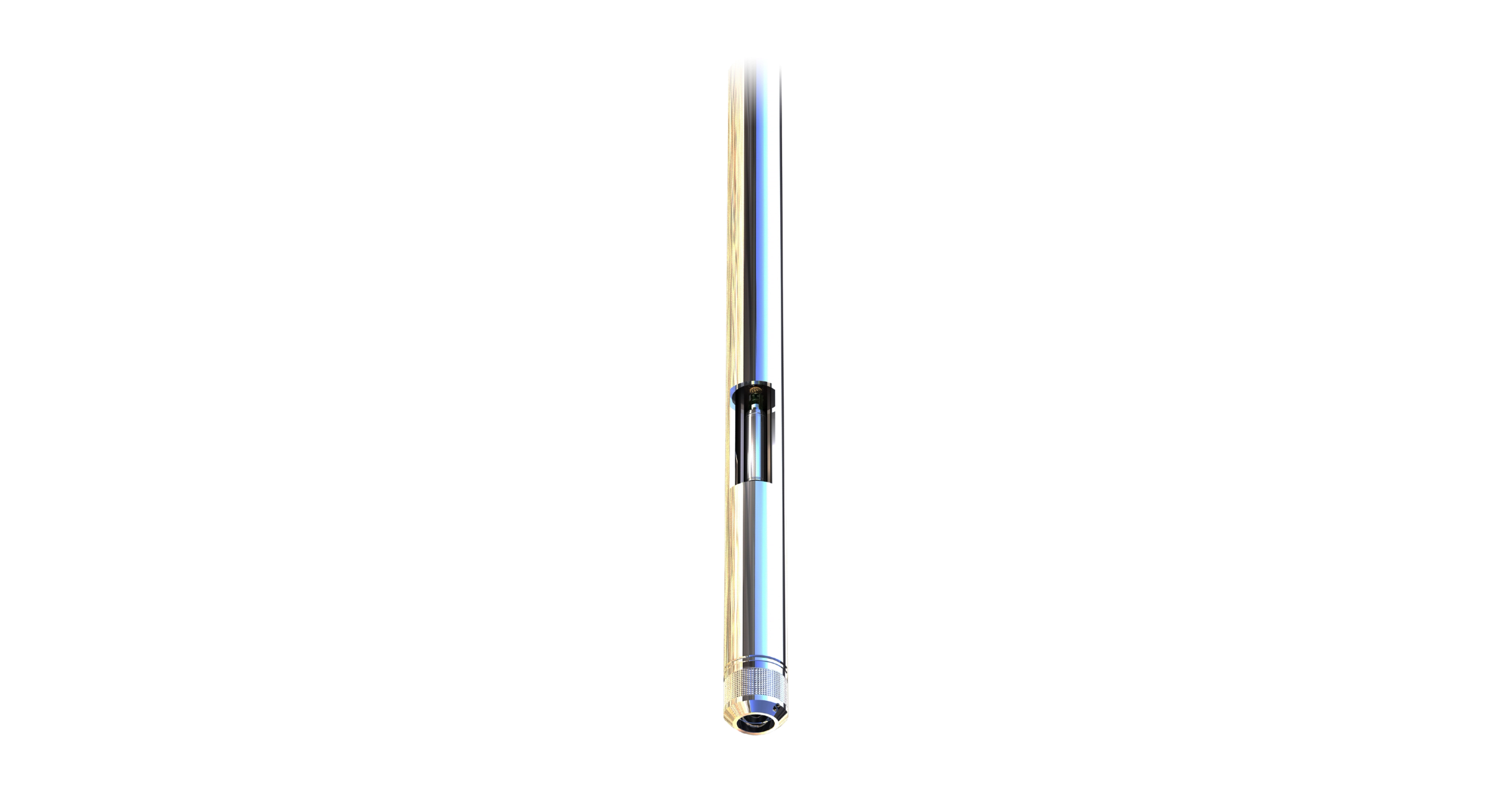

Perforating gamme ray ccl rendering

Perforating Gamma Ray CCL

Hunting’s perforating gamma ray tools provide a rugged and reliable means of stratigraphic correlation depth control for completion operations.

Product summary

Hunting's perforating gamma ray tools provide a rugged and reliable means of stratigraphic correlation depth control for completion operations. They are also trustworthy tools for balanced, underbalanced and overbalanced completion operations, for conducting select fire or addressable perforating gun operations or setting plugs and packers.

Features

  • Compatible with all types of detonators, igniters andfiring modules and with Hunting’s EBFire® and ControlFire®perforating switches

  • Durable CCL for repetitive perforating operations

  • Integrated shock sub for additional tool protection

  • Hardened CCL's constructed with Alnico 5 magnets

  • Patented shock protection technology allows for construction of gamma perforators with larger, more sensitive scintillation detectors

  • Designed to operate at +50VDC

  • Sizes range from 1-11/16 in. (42.9 mm) to 3-1/8 in. (79.4 mm) ODwith a variety of configurableoptions

  • Construction with Geiger-Muller detectors optional

Benefits

  • Reliable operation in extreme shock and impact environments

  • Higher logging speed using larger scintillation detector

  • Optimized CCL signal performance

  • Reduced maintenance cost due to high MTBF

  • Improved tool reliability in underbalance and overbalance completion conditions

  • Superior log quality, higher logging speeds and easier stratigraphic correlation for depth control

  • Packaged scintillation perforating detector reliability exceeds that found in Geiger-Muller detector technology

  • Flexibility with a range of services
