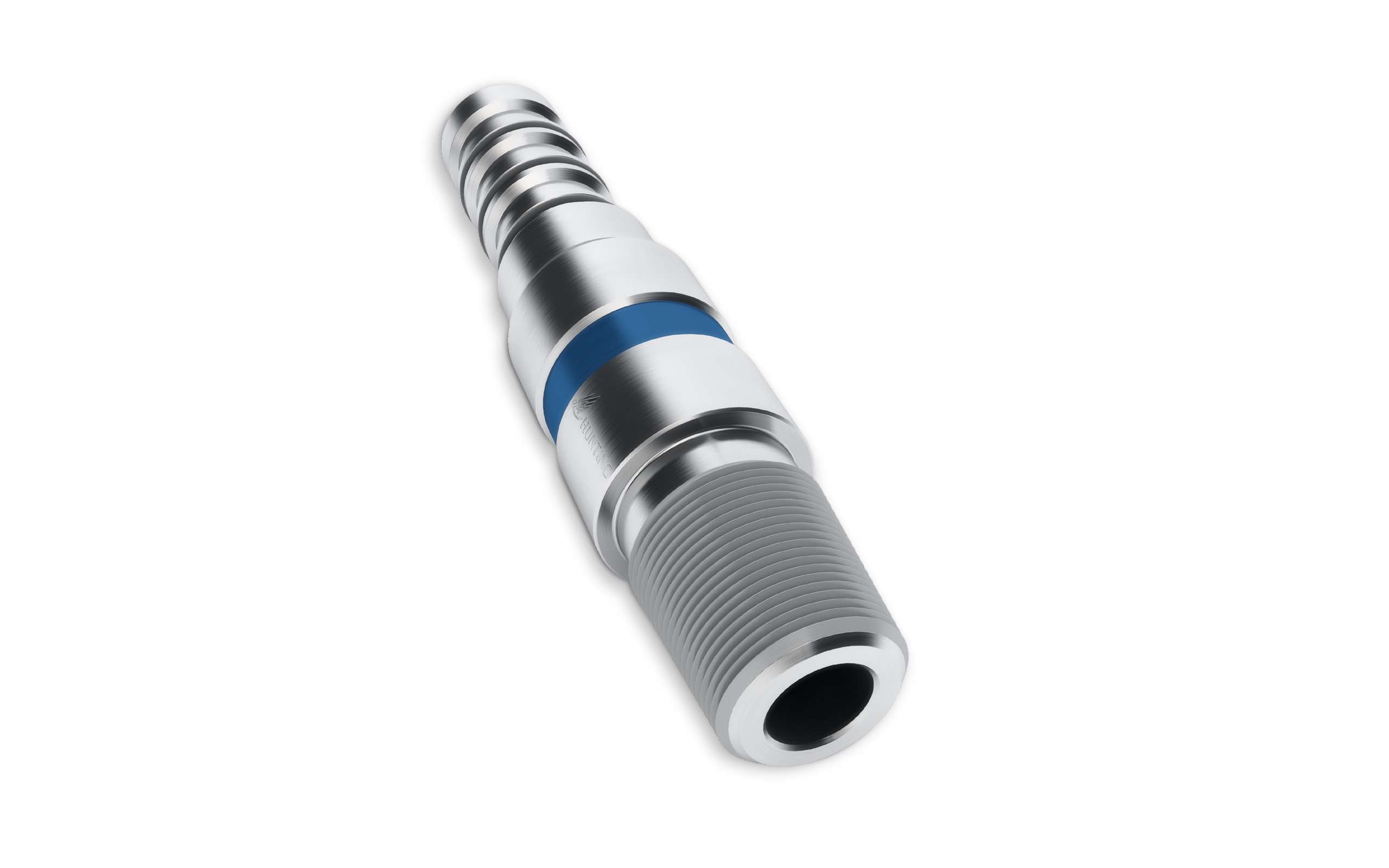

Roll-On Connector

Roll-On Connector

The Roll-On Connector with one-piece design provides a robust, cost effective means of attaching a BHA to the coil.

Product summary

The Roll-On Connector with one-piece design provides a robust, cost effective means of attaching a BHA to the coil.

The one-piece design incorporates three O-ring grooves providing added security in high-pressure applications, while three crimping grooves give improved tensile strength.

The connectors can be supplied with standard through-tubing tool joints or cut to suit customer requirements. The connector is reusable and furnished with standard O-rings making it extremely easy to redress in the field.

The Roll-On Connector is available for any combination of coil tubing and thread size.

Features

  • Attaches a BHA to the coil

  • Available for all coil sizes

  • One-piece design

  • Reusable connector fitted with standard O-rings

  • Robust and cost effective

  • Three O-ring grooves

  • Three crimping grooves

Benefits

  • Easy to redress in the field

  • Provides added security in high-pressure applications
