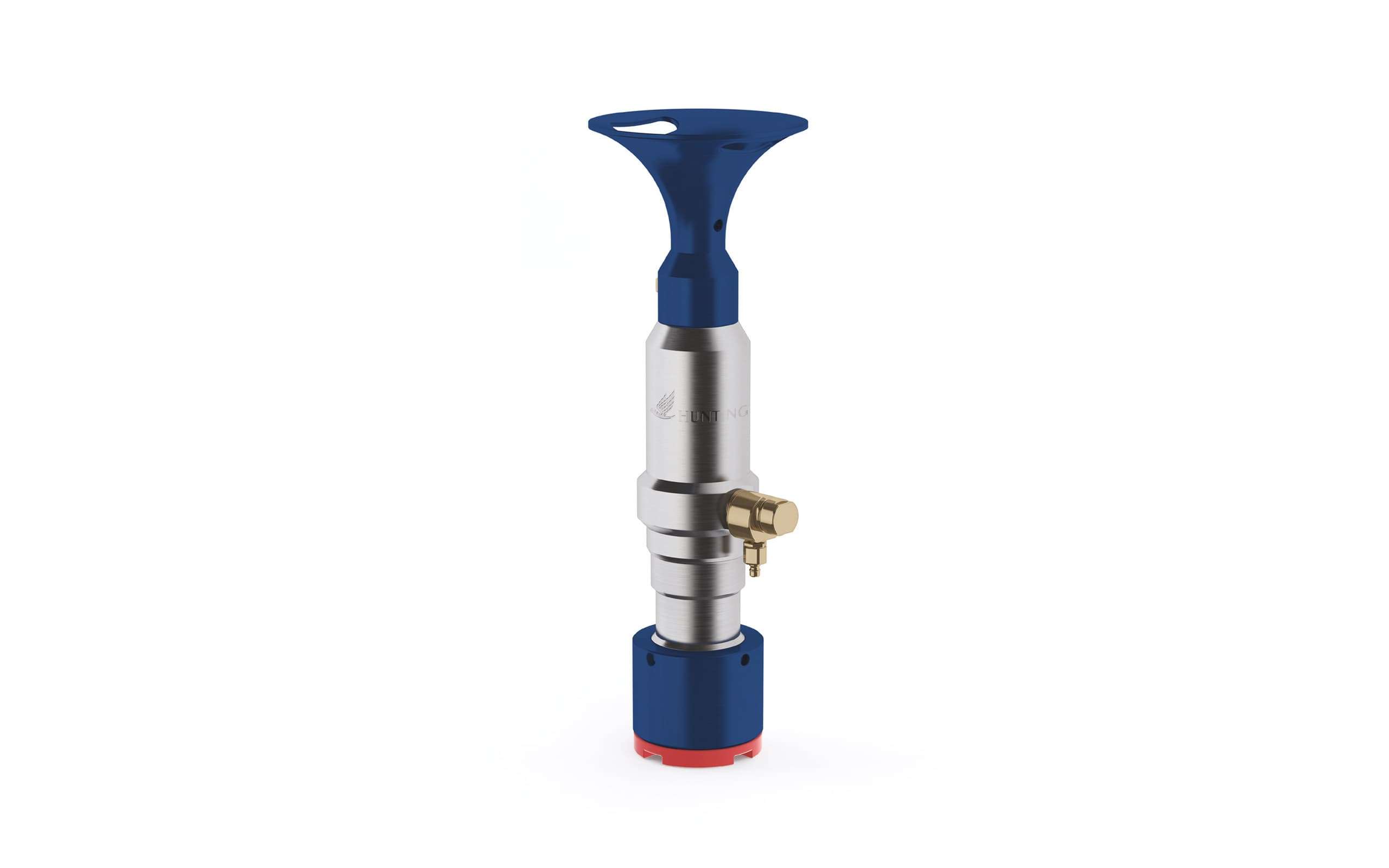

Hydraulic Line Wiper rendering

Hydraulic Line Wipers

When fitted to the top of a Grease Injection Control Head, the purpose of a Hunting Line Wiper is to remove excess grease from braided cable when retrieving tools from the well.

Product summary

When fitted to the top of a Grease Injection Control Head, the purpose of a Hunting Line Wiper is to remove excess grease from braided cable when retrieving tools from the well.

The Hunting Line Wiper is supplied with a cable protector funnel on top and a quick union. This is traditionally fitted above grease injection heads fitted with only a pack off

Brass upper and lower packing adapters guide the cable through the rubber element, delivering the wiping effect. When retrieving tools from the well, the wiper seal is gently compressed to tighten against the cable hydraulically.

Elements are available to suit different well conditions

Features

  • Quick Union connection

  • Hydraulic functioned element

  • Top funnel

  • Brass upper and lower glands

  • Split rubber element

Benefits

  • Can be fitted above the original grease heads fitted with only a pack off

  • Pressure can be applied hydraulically to the line wiper

  • The top funnel is to protect the wire from damage whilst in operation and rigging up/down

  • Brass upper and lower glands ensure the wire runs central in the element

  • Element can be replaced with cable through the wiper assembly
